D4245EVO Fixed Wing Motor

Ang mataas na kalidad na D4245EVO Fixed Wing Motor ay inaalok ng tagagawa ng China na Flash Hobby. Bumili ng D4245EVO Fixed Wing Motor na may mataas na kalidad nang direkta sa mababang presyo.
âTimbang: 173.5g(Kabilang ang mga wire)
âLaki ng Motor: 42.8 x45mm
âLaki ng Shaft: 5.0*63.0mm
âDiameter ng Stator: 35mm
âTaas ng Stator: 15mm
âMotor Mount: 25*25mm(M3*4)
âConfiguration: 12N14P
âKV Value: 700KV, 800KV o customed KV

Modelo:D4245EVO

Magpadala ng Inquiry

Paglalarawan ng Produkto

Bumili ng Hot D4245EVO Fixed Wing Motor na gawa sa China. Ang Flash Hobby ay isang tagagawa at supplier ng D4245EVO Fixed Wing Motor sa China.

D4245 EVOApplication ng RC Brushless Motor

D4245EVOï¼3515ï¼ RC Outrunner Brushless Motor para sa UAV Aircraft Multicopters RC Plane Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm

D4245 EVOMga Tampok ng RC Brushless Motor:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

Mataas na Temperatura na Lumalaban sa Copper Wire Winding

D4245 EVODetalye ng RC Brushless Motor

Timbang: 173.5g(Kabilang ang mga wire)
Laki ng Motor: 42.8 x45mm
Laki ng Shaft: 5.0*63.0mm
Diameter ng Stator: 35mm
Taas ng Stator: 15mm
Motor Mount: 25*25mm(M3*4)
Configuration: 12N14P

Halaga ng KV para sa Pagpili:

Halaga ng KV: 700KV, 800KV o naka-customize na KV

KV: 700KV
Pinakamataas na watts: 1013W
Pinakamataas na Kasalukuyang: 55.63A
Walang kasalukuyang Load: 1.47A/10V
Paglaban: 45.4mÎ©
Baterya: 5-6S Lipo
Iminungkahing Prop: 14 inch prop

KV: 800KV
Max watts: 1210.7W
Pinakamataas na Kasalukuyang: 58.6A
Walang kasalukuyang Load: 1.70A/10V
Paglaban: 30.4mÎ©
Baterya: 5-6S Lipo
Iminungkahing Prop: 12 pulgadang prop

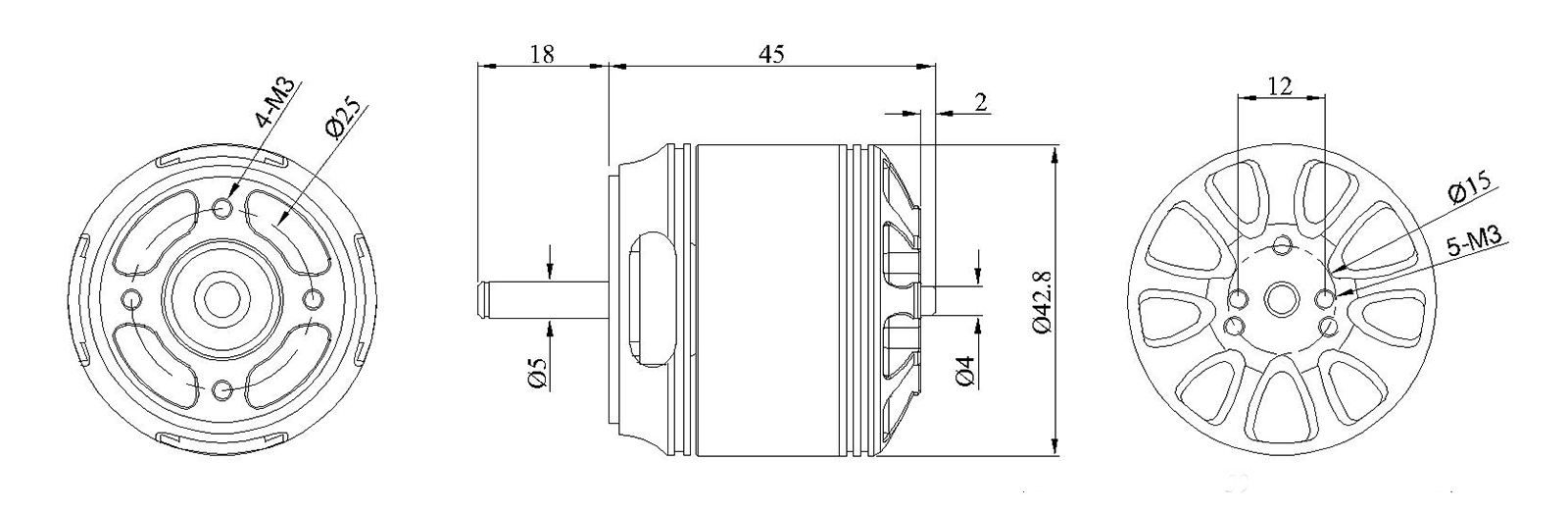

D4245 EVOMotor Drawing:

D4245 EVOMotor Test Data:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Ang Prop	Throttle(%)	KASALUKUYANG (A)	Power(W)	Pagtulak (g)	PRM	Kahusayan (g/W)	Nagpapatakbo temperatura(℃)
D4245-700KV(EVO)	18.50	APC 12x6	40%	6.12	113.2	835	5863	7.4	48.1℃
	18.45		50%	8.67	160.0	1012	6549	6.3
	18.39		60%	12.36	227.3	1305	7319	5.7
	18.28		70%	17.59	321.5	1661	8139	5.2
	18.17		80%	24.12	438.3	2012	8884	4.6
	18.09		90%	33.00	597.0	2425	9687	4.1
	17.88		100%	36.43	651.4	2557	9943	3.9
	18.86	APC 13x6.5	40%	6.76	127.5	896	4922	7.0	52.2℃
	18.82		50%	11.53	217.0	1286	5833	5.9
	18.60		60%	18.03	335.4	1666	6659	5.0
	18.40		70%	26.60	489.4	2068	7367	4.2
	18.14		80%	37.18	674.4	2506	7985	3.7
	18.02		90%	49.48	891.6	2883	8572	3.2
	17.97		100%	54.48	979.0	3025	8727	3.1
	18.86	APC 14x7	40%	6.76	127.5	898	4902	7.0	58.4℃
	18.75		50%	11.22	210.4	1306	5794	6.2
	18.66		60%	18.21	339.8	1842	6743	5.4
	18.55		70%	26.83	497.7	2341	7511	4.7
	18.47		80%	36.72	678.2	2820	8154	4.2
	18.31		90%	49.33	903.2	3324	8736	3.7
	18.21		100%	55.63	1013.0	3517	8946	3.5
	22.11	APC 12x6	40%	7.51	166.0	1011	6575	6.1	60.3℃
	22.01		50%	11.23	247.2	1350	7437	5.5
	21.88		60%	16.93	370.4	1780	8390	4.8
	21.76		70%	23.89	519.8	2192	9286	4.2
	21.65		80%	33.22	719.2	2657	10121	3.7
	21.49		90%	45.21	971.6	3077	10930	3.2
	21.31		100%	49.92	1063.8	3177	11184	3.0
D4245-800KV(EVO)	18.78	APC 12x6	40%	11.88	223.1	1171	7086	5.2	52.6℃
	18.46		50%	16.57	305.9	1474	7823	4.8
	18.19		60%	22.20	403.8	1754	8535	4.3
	18.06		70%	30.02	542.2	2182	9320	4.0
	17.84		80%	41.86	746.8	2590	10192	3.5
	17.66		90%	56.94	1005.6	3104	11017	3.1
	17.53		100%	59.60	1044.8	3180	11848	3.0
	18.83	APC 13x6.5	40%	13.89	261.5	1201	5855	4.6	56.47
	18.46		50%	20.67	381.6	1652	6546	4.3
	18.26		60%	32.59	595.1	2214	7099	3.7
	17.99		70%	46.29	832.8	2803	7672	3.4
	17.67		80%	50.36	880.0	2960	8488	3.4
	17.25		90%	56.02	940.6	3120	9287	3.3
	17.10		100%	58.96	1008.2	3250	9646	3.2
	22.25	APC 12x6	40%	15.31	340.6	1587	8014	4.7	61.1℃
	22.18		50%	22.10	490.2	2017	8925	4.1
	22.15		60%	31.32	693.7	2480	9848	3.6
	21.96		70%	41.63	914.2	2968	10806	3.2
	20.90		80%	53.00	1107.7	3478	11436	3.1
	20.70		90%	56.88	1177.4	3529	11287	3.0
	20.66		100%	58.60	1210.7	3635	11235	3.0
Mga Tala: Ang kondisyon ng pagsubok ng temperatura ay temperatura ng ibabaw ng motor sa 100% throttle habang tumatakbo ang motor ng 15 s. temperatura ng kapaligiran 26â
