3530EVO Fixed Wing Motor

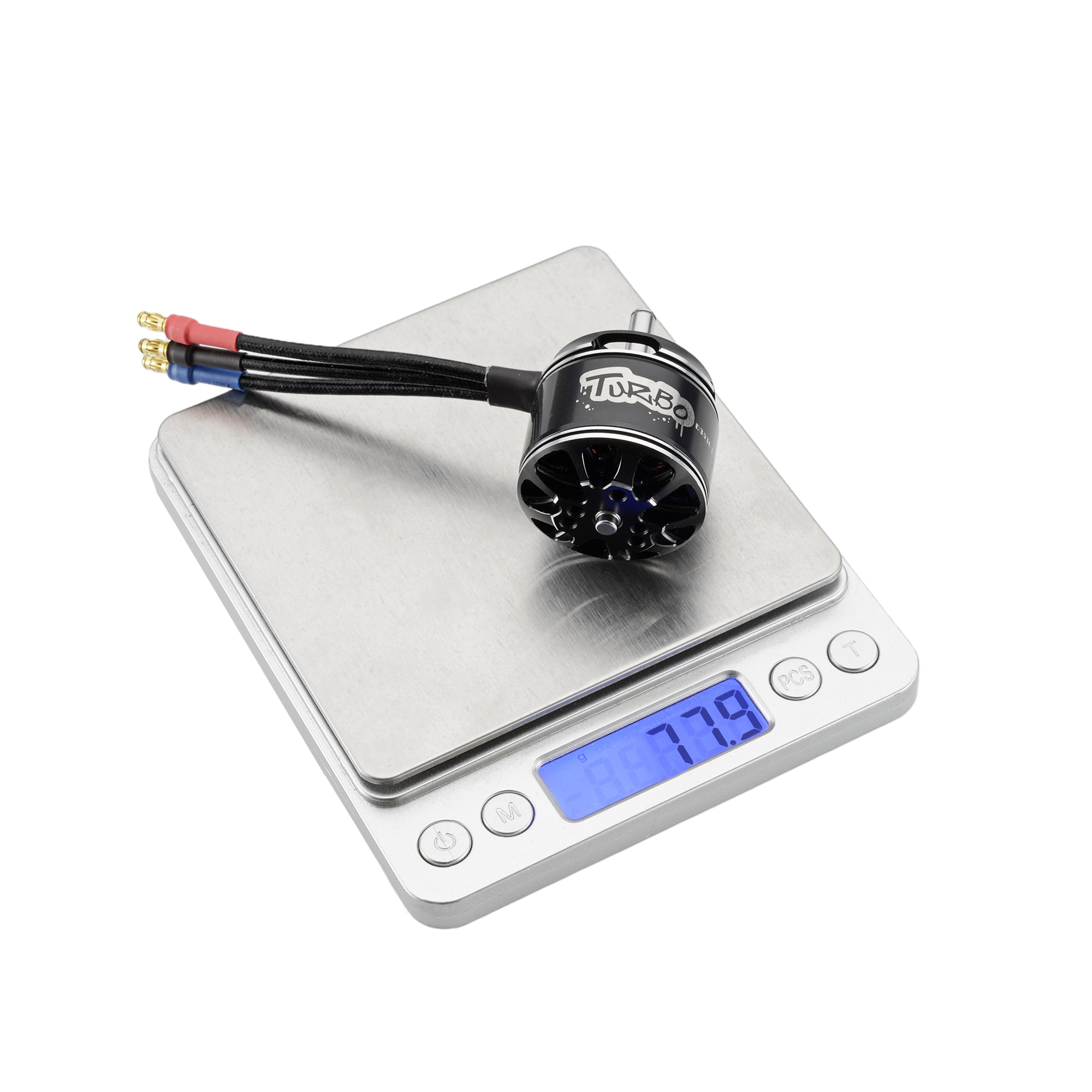

âTimbang: 75.1g(Kabilang ang mga wire)
âLaki ng Motor: 35.3 x30mm
âLaki ng Shaft: 5.047.5mm
âDiameter ng Stator: 28mm
âTaas ng Stator: 8mm
âMotor Mount: 1925mm(M3*4)
âConfiguration: 12N14P
âKV Value: 1100KV, 1400KV,1700KV o customed KV
Ang sumusunod ay isang panimula sa D3530EVO Fixed Wing Motor, umaasa akong matulungan kang mas maunawaan ang D3530EVO Fixed Wing Motor. Maligayang pagdating sa mga bago at lumang customer na patuloy na makipagtulungan sa amin upang lumikha ng mas magandang kinabukasan nang magkasama!

Modelo:D3530EVO

Magpadala ng Inquiry

Paglalarawan ng Produkto

D3530 EVOAplikasyon ng RC Brushless Motor

Para sa 3530EVO Fixed Wing Motor, lahat ay may iba't ibang espesyal na alalahanin tungkol dito, at ang ginagawa namin ay para mapakinabangan ang mga kinakailangan sa produkto ng bawat customer, kaya ang kalidad ng aming 3530EVO Fixed Wing Motor ay tinanggap ng maraming customer at natamasa ang magandang reputasyon sa maraming bansa. Ang Flash Hobby 3530EVO Fixed Wing Motor ay may katangiang disenyo at praktikal na pagganap at mapagkumpitensyang presyo, para sa karagdagang impormasyon sa 3530EVO Fixed Wing Motor, mangyaring huwag mag-atubiling makipag-ugnayan sa amin. D3530EVOï¼2808ï¼ RC Brushless Motor para sa UAV Aircraft Multicopters RC Plane Helicopter Cradle Coffee Machine Milk Tea Machine electric drilling machine mowing machine robotic arm

3530 EVO RC Brushless Motor Features
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing

Mataas na Temperatura na Lumalaban sa Copper Wire Winding

3530 EVO RC Brushless Motor na Detalye

Timbang: 55.7g(Kabilang ang mga wire)
Laki ng Motor: 28 x26mm
Laki ng Shaft: 3.0*41.0mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P

3530 EVO KV na halaga para sa Pagpili

Halaga ng KV: 1100KV, 1400KV,1700KV o naka-customize na KV

KV: 1100KV
Pinakamataas na watts: 380W
Pinakamataas na Kasalukuyang: 23.27A
Walang kasalukuyang Load: 1.16A/10V
Paglaban: 97.5mÎ©
Baterya: 3-4S Lipo
Iminungkahing Prop: 8 inch prop

KV: 1400KV
Pinakamataas na watts: 663W
Pinakamataas na Kasalukuyang: 42.97A
Walang kasalukuyang Load: 1.77A/10V
Paglaban: 54.4mÎ©
Baterya: 3-4S Lipo
Iminungkahing Prop: 8 inch prop

KV: 1700KV
Max watts: 702.5W
Pinakamataas na Kasalukuyang: 44.92A
Walang kasalukuyang Load: 2.48A/10V
Paglaban: 34.3mÎ©
Baterya: 3-4S Lipo
Iminungkahing Prop: 7 pulgadang prop

3530 EVO Motor Drawing:

D3530 EVO RC Brushless Motor Test Datas

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Ang Prop	Throttle(%)	KASALUKUYANG (A)	Power(W)	Pagtulak (g)	PRM	Kahusayan (g/W)	Nagpapatakbo temperatura(℃)
D3530-1100KV(EVO)	12.45	7x5	40%	3.10	38.6	221	6162	5.7	37.2℃
	12.43		50%	4.21	52.3	284	6874	5.4
	12.41		60%	5.30	65.8	311	7441	4.7
	12.38		70%	6.63	82.1	373	8097	4.5
	12.34		80%	8.83	109.0	436	8941	4.0
	12.28		90%	11.62	142.7	519	9862	3.6
	12.26		100%	13.00	159.4	565	10156	3.5
	12.82	APC8x6	40%	3.33	42.7	264	6299	6.2	38.3℃
	12.75		50%	4.53	57.8	331	7043	5.7
	12.60		60%	5.80	73.1	393	7639	5.4
	12.45		70%	7.36	91.6	446	8323	4.9
	12.43		80%	9.93	123.4	555	9178	4.5
	12.40		90%	13.29	164.8	670	10060	4.1
	12.33		100%	14.75	181.9	715	10347	3.9
	16.86	7x5	40%	4.65	78.4	352	7799	4.5	39.1℃
	16.75		50%	6.45	108.0	433	8691	4.0
	16.70		60%	8.35	139.4	513	9496	3.7
	16.50		70%	10.82	178.5	627	10363	3.5
	16.45		80%	14.86	244.4	753	11467	3.1
	16.32		90%	19.51	318.4	929	12467	2.9
	16.22		100%	21.52	349.1	958	12764	2.7
	16.77	APC8x6	40%	4.71	79.0	390	7660	4.9	39.6℃
	16.70		50%	6.56	109.6	477	8590	4.4
	16.65		60%	8.69	144.7	582	9370	4.0
	16.50		70%	11.44	188.8	695	10227	3.7
	16.48		80%	15.92	262.4	877	11264	3.3
	16.43		90%	21.12	347.0	1021	12125	2.9
	16.36		100%	23.27	380.7	1080	12349	2.8
D3530-1400KV(EVO)	12.39	7x5	40%	5.52	68.4	296	7357	4.3	38.5℃
	12.35		50%	7.56	93.4	352	8238	3.8
	12.31		60%	9.78	120.4	412	8985	3.4
	12.27		70%	12.31	151.0	504	9766	3.3
	12.18		80%	16.96	206.6	662	10790	3.2
	12.07		90%	22.19	267.8	784	11772	2.9
	12.01		100%	24.38	292.8	826	12111	2.8
	12.86	APC8x6	40%	6.41	82.4	442	6553	5.4	39.3℃
	12.80		50%	9.09	116.4	607	7405	5.2
	12.79		60%	12.93	165.4	756	8315	4.6
	12.69		70%	17.57	223.0	919	9142	4.1
	12.56		80%	23.26	292.1	1046	10014	3.6
	12.38		90%	30.30	375.1	1284	10721	3.4
	12.28		100%	32.63	400.7	1351	10891	3.4
	12.38	APC9x6	40%	6.01	74.4	356	6418	4.8	39.8℃
	12.34		50%	8.49	104.8	538	7272	5.1
	12.27		60%	11.96	146.7	693	8133	4.7
	12.19		70%	16.14	196.7	861	8949	4.4
	12.08		80%	21.74	262.6	1066	9773	4.1
	11.93		90%	28.34	338.1	1195	10569	3.5
	11.86		100%	30.83	365.6	1283	10790	3.5
	16.28	APC8x6	40%	8.58	139.7	654	7679	4.7	40.7℃
	16.19		50%	12.66	205.0	836	8724	4.1
	16.07		60%	18.34	294.7	1009	9730	3.4
	15.84		70%	24.11	381.9	1241	10598	3.2
	15.65		80%	31.61	494.7	1469	11341	3.0
	15.47		90%	40.16	621.3	1650	12010	2.7
	15.43		100%	42.97	663.0	1662	12070	2.5
D3530-1700KV(EVO)	12.65	7x5	40%	9.17	116.0	430	8664	3.7	39.6℃
	12.60		50%	12.77	160.9	522	9630	3.2
	12.52		60%	16.68	208.8	614	10457	2.9
	12.40		70%	21.83	270.7	762	11455	2.8
	12.23		80%	28.73	351.4	912	12538	2.6
	11.95		90%	37.08	443.1	1100	13430	2.5
	11.92		100%	40.81	486.5	1167	13725	2.4
	12.68	APC8x6	40%	9.29	117.8	502	8524	4.3	40.3â
	12.61		50%	13.07	164.8	620	9477	3.8
	12.53		60%	17.41	218.1	737	10299	3.4
	12.42		70%	23.26	288.9	894	11222	3.1
	12.27		80%	31.38	385.0	1056	12150	2.7
	12.07		90%	41.31	498.6	1207	12963	2.4
	11.99		100%	44.51	533.7	1229	13224	2.3
	16.57	APC7x4	40%	10.37	171.8	545	11871	3.2	40.3â
	16.49		50%	13.85	228.4	716	13091	3.1
	16.37		60%	17.67	289.3	869	14130	3.0
	16.14		70%	22.83	368.5	1046	15259	2.8
	15.92		80%	30.40	484.0	1255	16705	2.6
	15.65		90%	39.43	617.1	1474	17890	2.4
	15.64		100%	44.92	702.5	1577	18461	2.2
Mga Tala: Ang kondisyon ng pagsubok ng temperatura ay temperatura ng ibabaw ng motor sa 100% throttle habang tumatakbo ang motor ng 15 s. temperatura ng kapaligiran 26â
